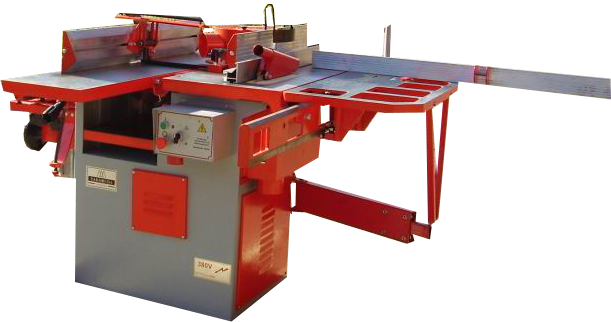

K5 400

Производитель:

ZMM Yakoruda

ZMM Yakoruda

Тechnical specification of K5 400

Technical dataDim.Value
Planer
Work table size mm 1920x400
Maximal depth of cut mm 4
Diameter of the cutter block mm 86
Cutter block speed min-1 5200
Number of cutters pcs 3
Thicknesser
Work table size mm 690x400
Maximal depth of cut mm 3
Feeding speed m/min 8
Thickness of work detail max. mm 220
Number of cutters pcs 3
Cutter block speed min-1 5200
Circular saw
Work table size mm 850x450
Saw blade diameter mm 300
Spindle diameter mm 30
Maximal height of cut mm 85
Spindle speed min-1 3700
Spindle moulder
Work table size mm 850x450
Spindle diameter mm 30 (50 - optional)
Spindle vertical movement mm 130
Tool max diameter mm 190
Spindle speed - 2 speed motor min-1 6000 (3000/6000)
Tennoning garriage work table size mm 450x750
Mortiser
Drill maximal size mm 16
Work table size mm 400x250 (500 - optional)
Longitudinal stroke mm 100 (150 - optional)
Traverse stroke mm 100 (150 - optional)
Vertical stroke mm 100 (150 - optional)
Drill speed min-1 5200
Motor
Planer motor power KW 3.0
Thicknesser motor power KW 3.0
Circular saw motor power KW 2.2 (3.0 optional)
Spindle moulder motor power - 2 speeds KW 2.2 (3.0 optional)
Size of package
Length mm 1650
Width mm 1140
Height mm 1100
Weight
Net weight kg 600

Standard equipment

Machines are equipped with three induction motors to drive aggregates. Standard machines are three-phased 220/380 V, 50 H, 2800 cycles/min. At client’s request, the machines are offered with various tensions, powers, frequencies and cycles, incl. continuously variable cycle regulation /optional/. Every aggregate is independently controlled. Technical safety requirements prevent simultaneous work of two aggregates! Electric installation renders easy and handy aggregate starting and stopping /incl. in case of emergencies/, overburdening protection of motors and dust protection /IP-54/.
