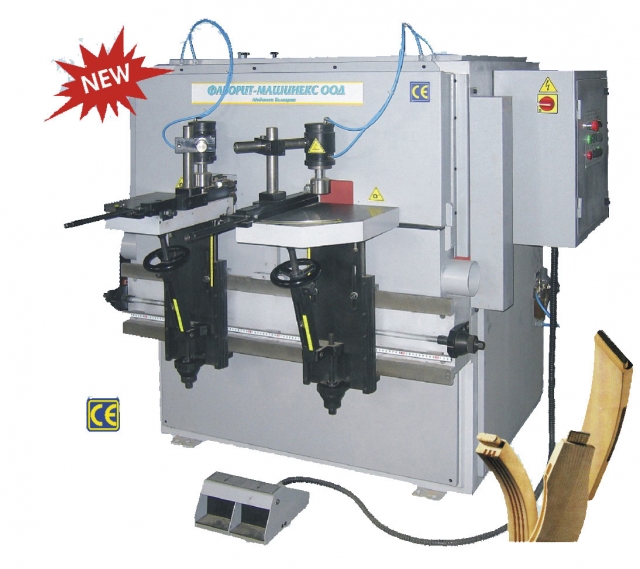

FK 200 OC Automatic twin table tenoner
Главная » Продукты » Дерево-обрабатывающие станки » Copy machines » FK 200 OC Automatic twin table tenoner
FK200 OC Tenoner is designed to produce accurate tenoners in chair, and other type of furniture and general solid wood components.
Производитель:
Favorit Machinex
Тechnical specification of FK 200 OC
| Technical data | Dim. | Value |
|---|---|---|
| Table tilt | deg | 0 to 20 |
| Maximal tenon length | mm | 100 |
| Maximal tenon width | mm | 30 |
| Maximal tenon depth | mm | 40 |
| Tenon tilt | deg | +/- 45 |
| Tenons per hour productivity | pcs./h | 500 to 700 |
| Dust suction ports diameter - 2 pcs. | mm | 80 |
| Motor | ||
| Work head motor power | KW | 0.75 |
| Cutter motor power | KW | 3 |
| Total unit power | KW | 3.75 |
| Size | ||
| LxWxH | mm | 1800x1350x1270 |
| Weight | ||
| Net weight | kg | 650 |
Standard equipment:
Hydraulic clamping system.
